Solar Pump Station SR961S for Solar Water Heater System Controller

Solar Pumping Station SR961S for solar water heater system

Specification

1.Integrated assembly.
2.Digital flow meter
3.110/220 rs15/6 pump
4.Energy log
5.Intelligent electrical control

Suitable for:

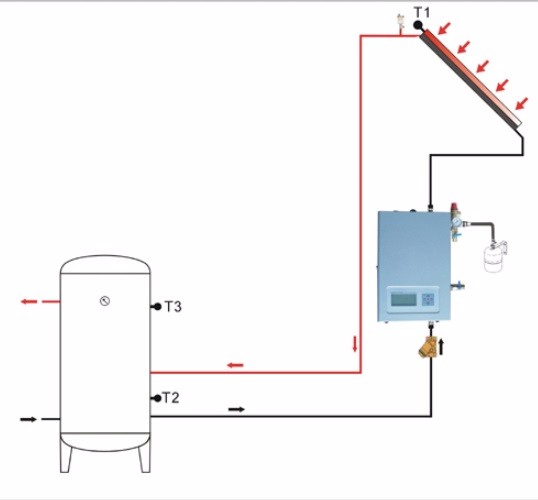

Suitable for Split and Pressure system, which set the flow control, heat cycle, the exhaust, pressure control, temperature display, the transfer liquid injection / discharge ,etc,Such multi-functional in one compact package of components, it have the features of easy-to-use and installation, its material and operating characteristics to take into account long time of collector in high temperature and other characteristics of the system.

Technical data:

Dimension of Appearance:L42cm×W28cm×H14cm

Power Consumption< 4W

Accuracy of temperature measuring±2oC

Range of collector temperature measuring-10200oC

Range of tank temperature measuring0100oC

Suitable power of pump:4pcs,< 600W

Suitable power of electrical heater:1pc,<1500W

INPUT:

One Sensor for collector(pt1000,probe≤500oC,Silicon cable≤280oC)

Two Sensors for tank (pt1000,probe≤135oC,pvc cable≤105oC)

Ambient temperature-1050oC

Water proof gradeIP43

FUNCTIONS:

SYSTME(ONE SYSTEM)

DT O & DT F Temperature difference controlling the Solar circuit pump

THET THET Timing heating

EM EM Emergency collector temperatureemergency switch-off temperature of collector)

CMX CMX Maximum limited collector temperature(collector cooling function)

CMN CMN low temperature protection of collector

CFR CFR frost protection of collector

SMX SMX Maximum temperature of tank

REC REC Tank re-cooling function

DVWG DVWG Anti-Legionella function

CIRC temperature controlled CIRC hot water circuit pump

CIRC time controlled CIRC hot water circuit pump

nMINv nMIN Solar circulation pump speed adjusting(RPM speed controlling)

Digital flow meter

Holiday fucntion

HND HND Manual mode

PASS PASS Password setting

LOAD LOAD Recovery to factory setting

Manual Heating

Temperature query function

Memory Protection

Screen protection

Trouble protection

ebus function(far distance controlling by keypad with display)

Packing: 1PC/Carton
